Steel Pipe Winding Mesh
Key words:
Category:
Steel Pipe Winding Mesh
- Product description
-
- 商品名称: Steel Pipe Winding Mesh
- 商品编号: 979360631129726976
DESCRIPTION:

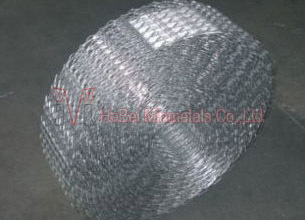

THIS MESH IS MADE FROM HOT DIP GALVANIZED STEEL WIRE. THE LINE WIRES ARE DEEPLY CRIMPED TO FACILITATE THE CONCRETE APPLICATION.
STANDARDS:
WIRE DIA:1.6/1.6MM;2./2.0MM;2.5/2.0MM+/-0.05MM
MESH SIZE: LINE WIRE:25.4+/-2MM
CROSS WIRE:67+/-5MM OR 92.4+/-5MM
CORE DIAMETER OF THE ROLL:800MM
ROLL WIDTH:190.5TO 266.7MM
ROLL LENGTH:230;160;125M
PACKING:
ROLLS STRAPPED INTO BUNDLES OF 5OR 6 ROLLS.
STANDARD TYPES
TYPE LINE WIRES(MM) CROSS WIRES(MM) ROLLENGTH(M) 1.60/1.60 1.60 1.60 230 2.00/2.00 2.00 2.00 160 2.50/2.00 2.50 2.50 125
